Mechanical 3-roller symmetrical machine

Home / Product center / 3-Rollers Mechanical Rolling Machine / Mechanical 3-roller symmetrical machine

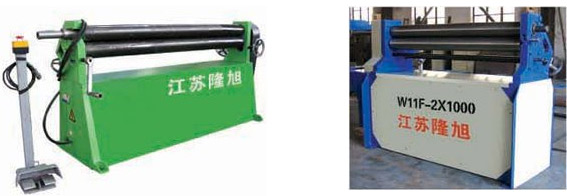

Mechanical 3-roller symmetrical machine

The machine adopts the 3-roller symmetrical structure  with the upper roller as the main drive
and the lower roller making vertical movement so as to clamp the plate materials tightl.The main drive comes from the engagement between the gear of the lower roller and the gear of the upper roller.The side roller makes elecating movements and has the function of preliminary bending and rolling.The machine is characterized with compact structure and convenient operation and maintenance.

Technical parameter

規格 型號 Model
最大卷 板厚度 Max. Thick ness of coiled plate (mm)
最大卷 板寬度

Max. Width of coiled plate (mm)

板材 屈服 極限 Yield ing limit of sheet meta (mm )

卷板 速度 Coil ing speed (m/ min )

滿(mǎn)載 最小 卷板 直徑 Min. Full loading diameter of coiled plate (mm)
上軸 直徑 Diameter of upper roller (mm)
下軸 直徑 Diameter of bottom roller (mm)
下輥中 心距 Central distance between bottom shafts(mm)
主電機 功率 Power of main motor (kW)
W11 -2X 1000
2
1000
245
6
250
120 120 120
2.2
W11 -2X 1200
2
1200
245
8.1
250
120
120
120
2.2
W11 -2X 1600 2
1600
245 8.1 250 130 130 130 2.2
W11 -2X 2000
2
2000
245
8.1
250
130
130
130
2.2
W11 -4X 1000
4
1000
245
5.4
300
140
140
140
3
W11 -4X 1200
4
1200
245
5.4
300
140
140
140
3
W11 -4X2000
4 2000 245 5.4 350 150 150 150 3
W11 -6X 1000
6 1000 245 5.4 350 140 140 140 3
W11 -6X 1500
6 1500 245 5.4 400 150 150 150 4
W11 -6X 2000
6 2000 245 5.4 400 160 160 160 4

Previous: MSeries W11 mechanical 3-roller symmetrical plate rolling machine    Next: Hydraulic symmetrical rolling machine return
