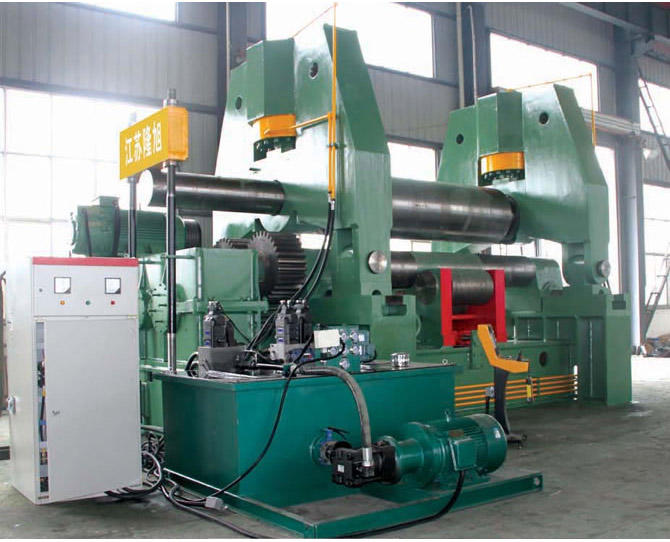

W11S Large-Sized Upper Roller Universal Plate Rolling Machine

Home / Product center / Upper Roller Universal Plate Rolling Machine / W11S Large-Sized Upper Roller Universal Plate Rolling Machine
W11S Large-Sized Upper Roller Universal Plate Rolling Machine

Excellent and accurate system,unique curving process,end-curving with high precision,there seems to be no fissure after continuous curving and the whole process is digitally controlled.Human-computer dialogue screen,and highly artificial,bending process software physically And the bending can be remedied automatically.It can be operated by one person,so very high-professional,in rolling O-shape-、U-shape and multiple-cutting R shapes.This machine takes a drum style on the upper roller and there is adjustable operation,it is applicable to straight line product from thin plate to thick ones.The unique back-desk rolling process,continuous curving to avoid dead bending and pointed peach.The top of the plate can be pressured somehow.It can control the length and shape of the remaining straighr line.Noe we can use the whole-style assembly because it is convenient and simple and movable.

Technical parameter

規格型號 Specification 最大卷板厚度 Max. thickness of coiled  plate (mm)

最大預彎厚度Max.plate thickness(mm)

最大卷板寬度 Max. width of coiled  plate(mm) 上輥直徑 Diameter of upper roller (mm) 主電機功率Main motor power
W11SNC-110x4000 110 90 4000 940 90
W11SNC-120x3000 120 100 3000 860 90
W11SNC-120x4000 120 100 4000 990 110
W11SNC-130x3000 130 110 3000 960 2x75
W11SNC-160x3000 160 120 3000 1080 2x75
W11SNC-160x4000 160 130 4000 1260 2x90

Previous:暫無(wú)    Next: Medium-size upper roller Universal Plate Rolling Machine return
